This article describes the process of entering a blood pressure to the notes and the different outputs depending on what is entered. This process is the same on both desktop and mobile devices.

The videos above show how to enter a blood pressure and record an action.

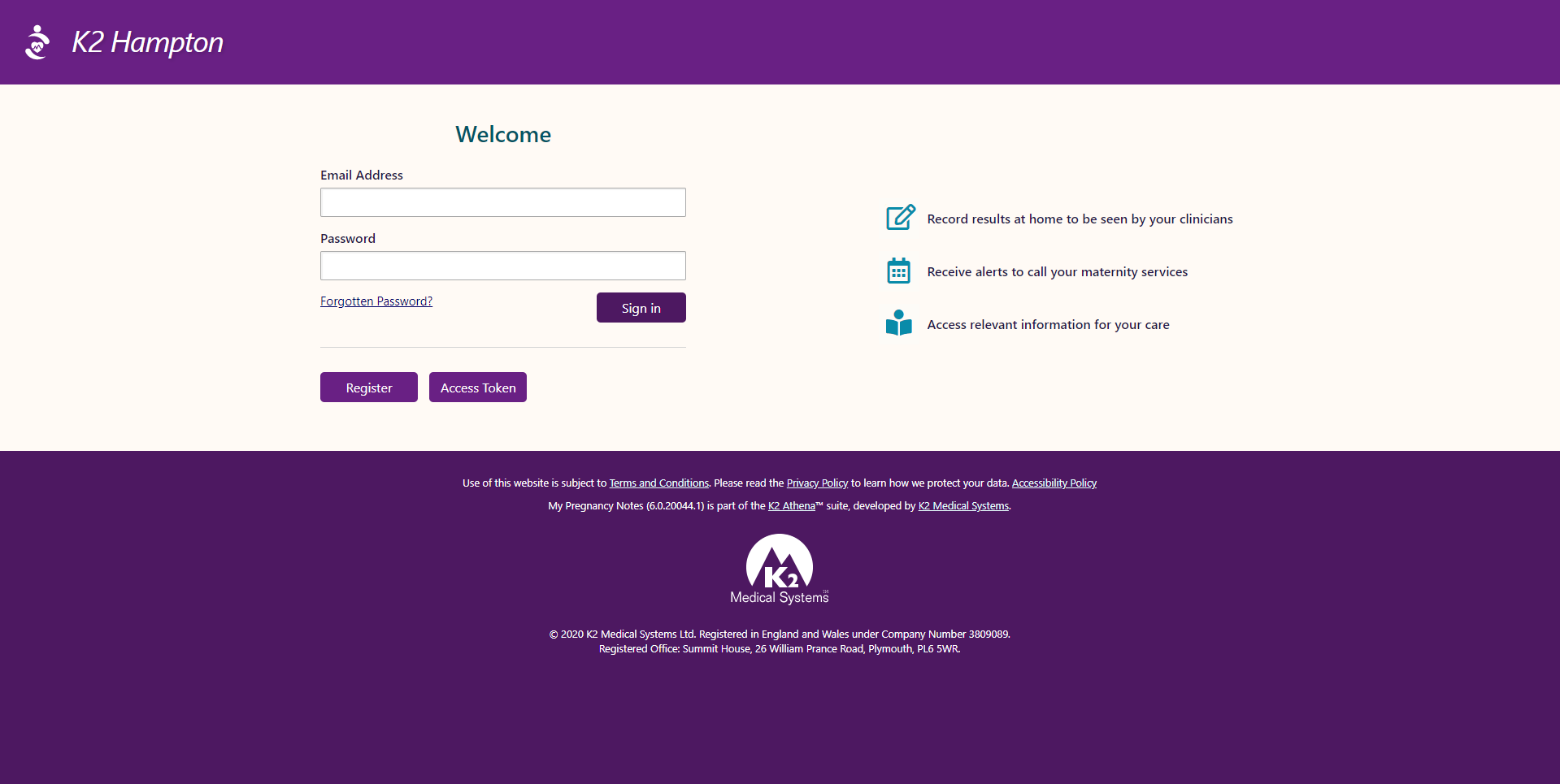

Sign in to the Hampton Website

  1. Follow the link to www.k2hampton.com
  2. Sign in

Blood Pressure - in normal ranges

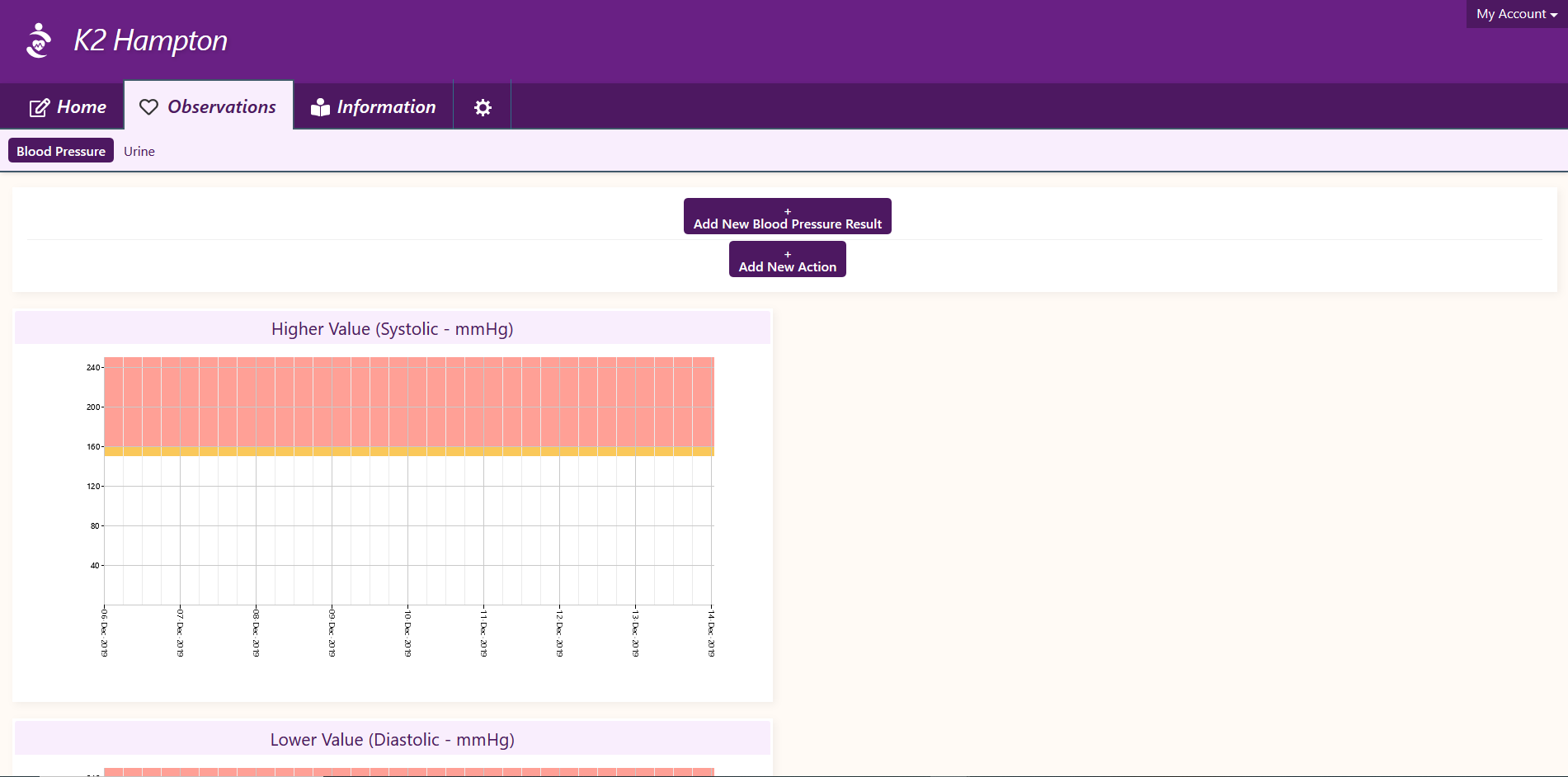

    1. Navigate to Observations > Blood Pressure

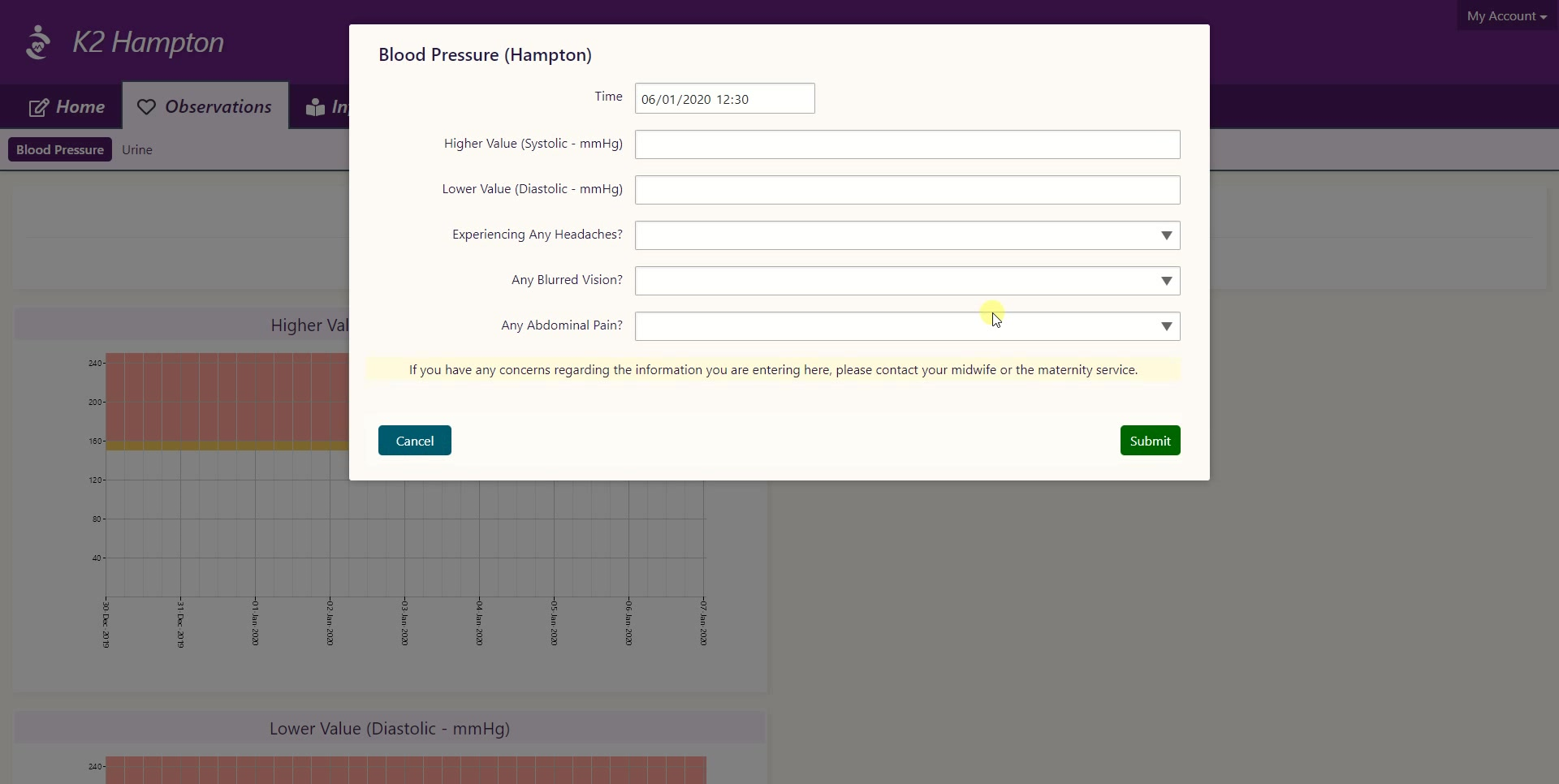

    2. Click add new blood pressure

  1. Change time to the time blood pressure was recorded (this is likely to be a few minutes before you enter it).
  2. Enter the blood pressure - These are both Mandatory
    1. higher value (systolic)
    2. lower value (diastolic)
  3. Answer the following questions - These are not mandatory
    1. Experiencing any headaches?
    2. Any Blurred vision?
    3. Any Abdominal Pain?
  4. Click Submit

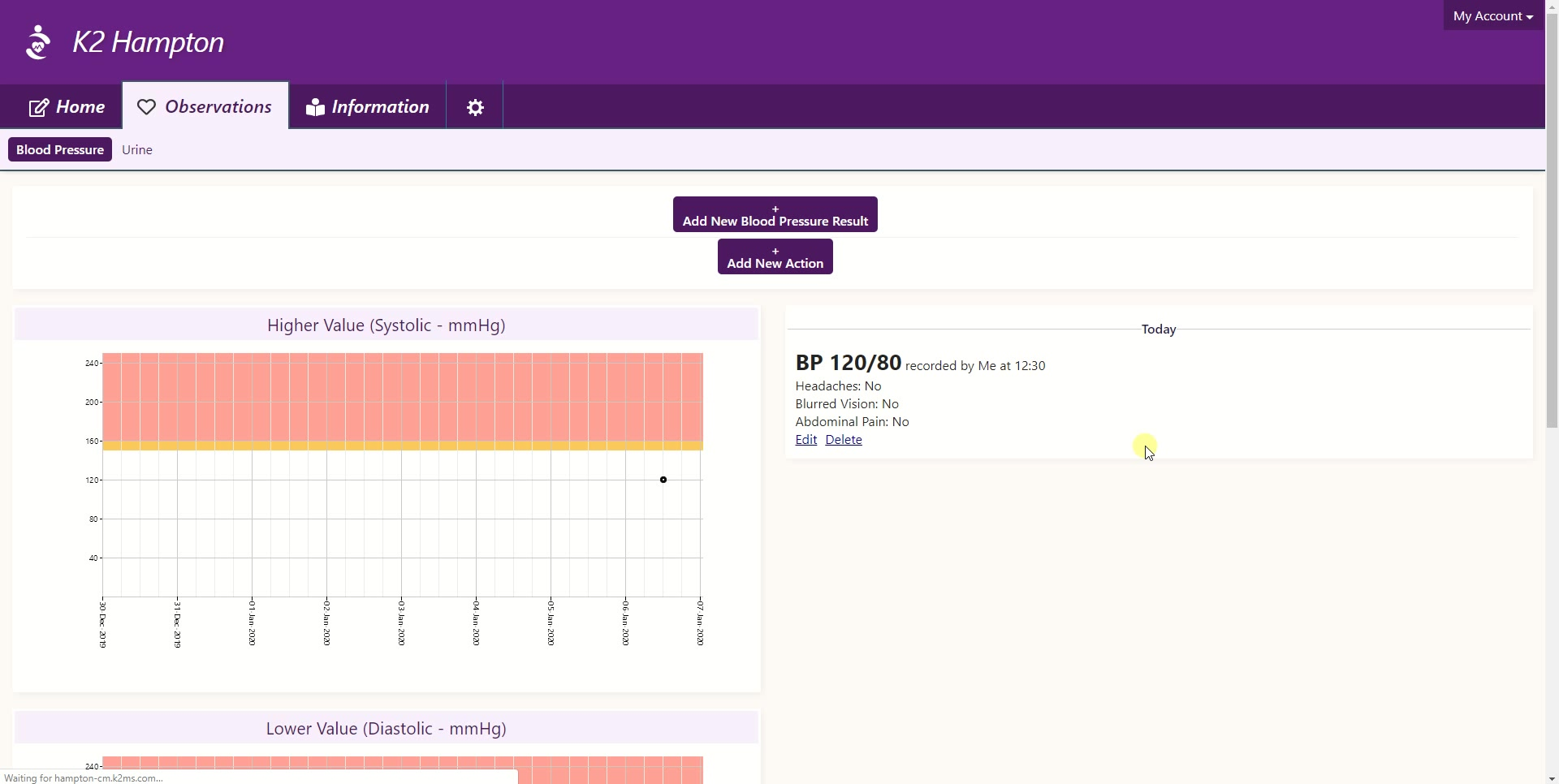

  1. The blood pressure and questions will appear in the table (in chronological order - most recent at the top)
  2. The blood pressure values will appear individually on their own graphs.
  3. Click edit to change the value entered.
  4. Click Delete and confirm to delete the entry.
Please note: the edit and delete functions should only be used if mistakes are made not to change or delete data that is accurate. All changes/deletions are logged in a full audit Trail.



Please note: if the observation entered displays entirely in black and no warning appears, then this observation is within range. However, if the woman is concerned at all by the observation she should still contact her maternity service.

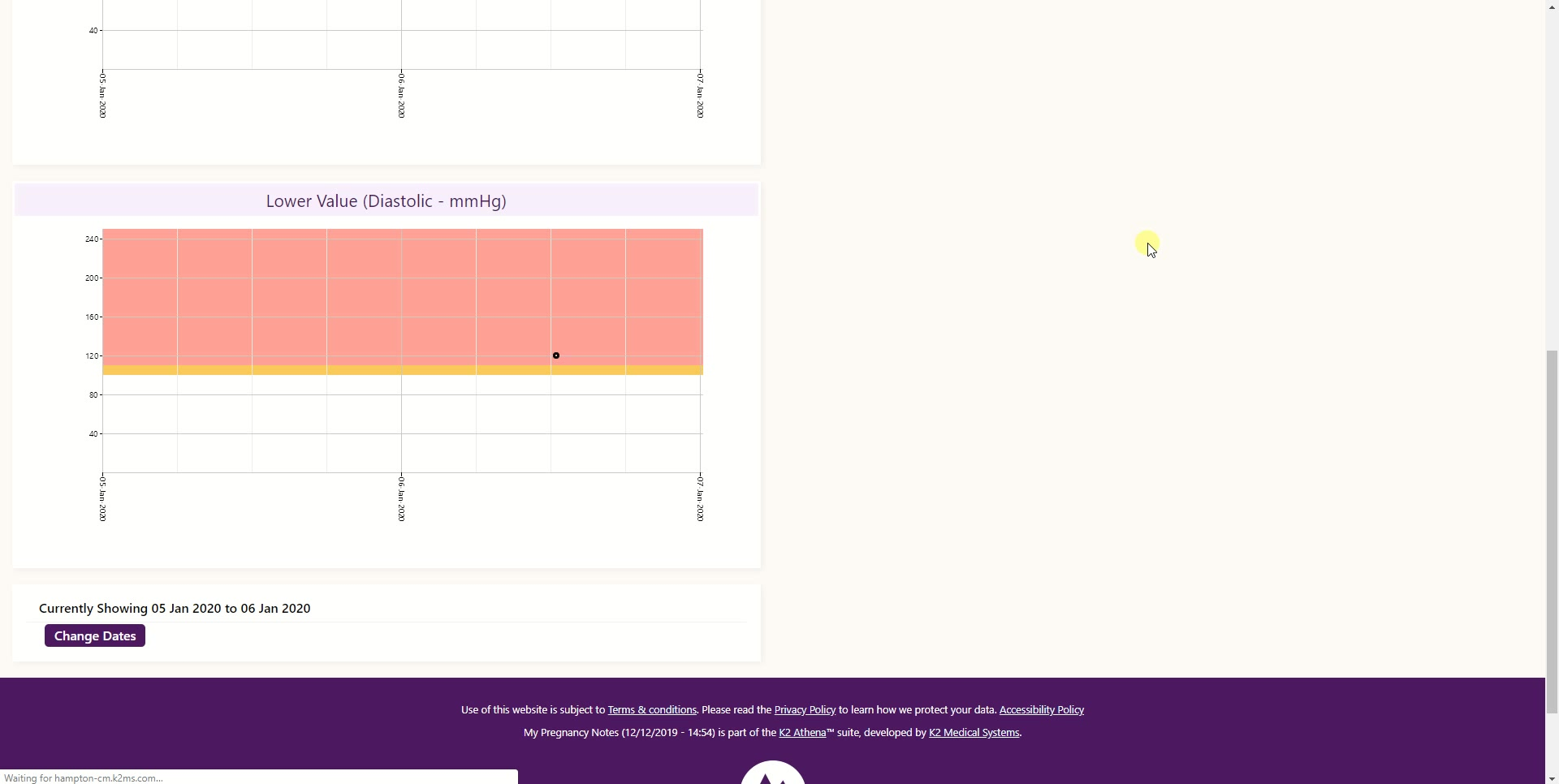

Blood Pressure - Change Chart Dates

It is possible to change the dates on the charts to see trends over different time periods. Changing the dates will change both the systolic and diastolic charts.

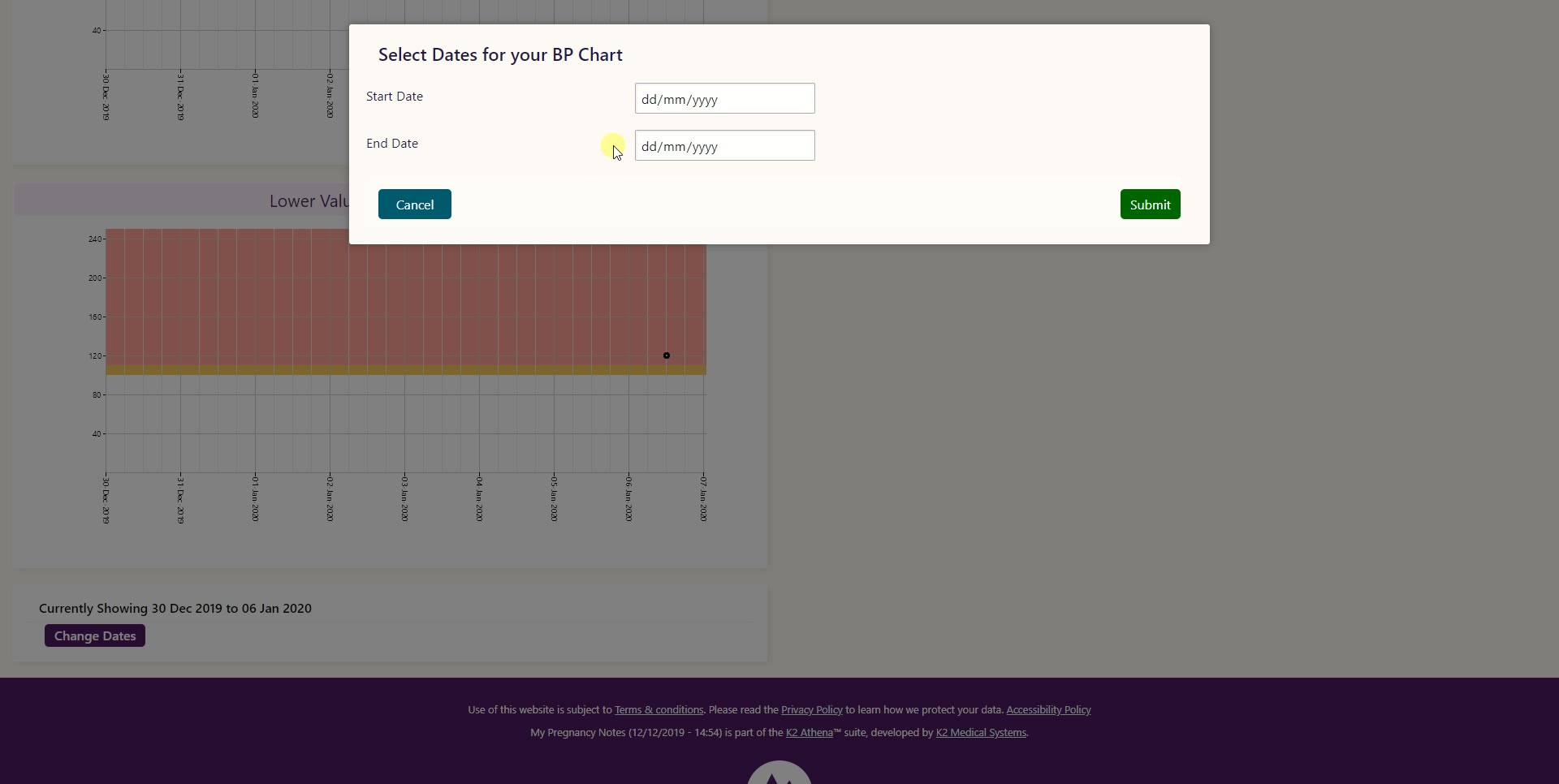

  1. Click Change Dates
  2. Add in Start Date
  3. Add in End Date
    1. You cannot add dates in the future or an end date before start date.
  4. Click Submit

  1. The charts will change to the dates specified.
Please Note: The charts will maintain this for one day and then revert back to a default of one week.


Blood Pressure - Outside normal ranges

  1. Repeat previous steps above, as for blood pressure in the normal range.

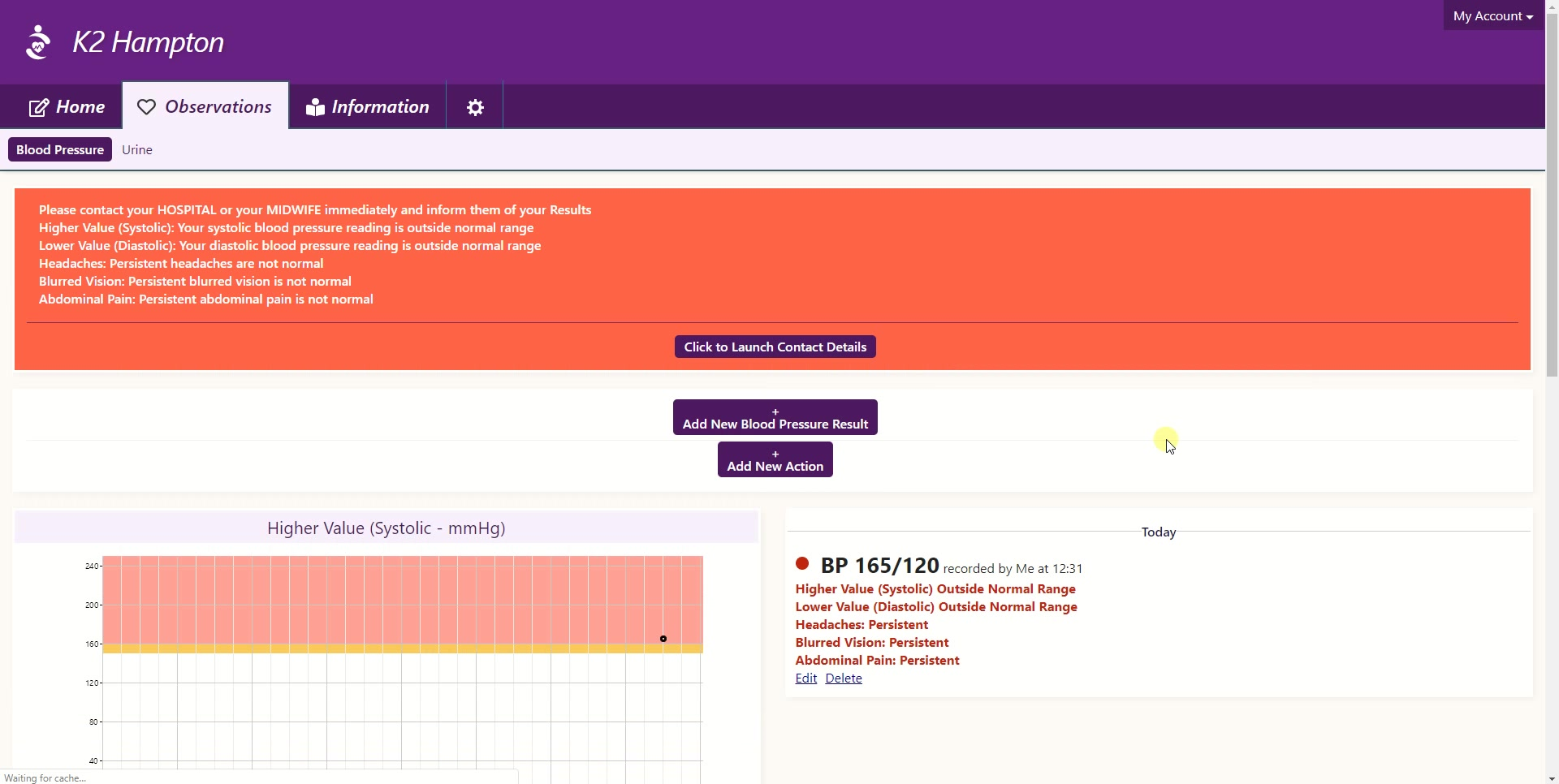

  2. Blood Pressure results and questions that are out of range will appear on the table and on the charts.
    1. Values entered will either appear in Orange or Red depending on severity.
    2. Out of Range Observations will appear with either a Red or Orange Dot to indicate they are out of range.

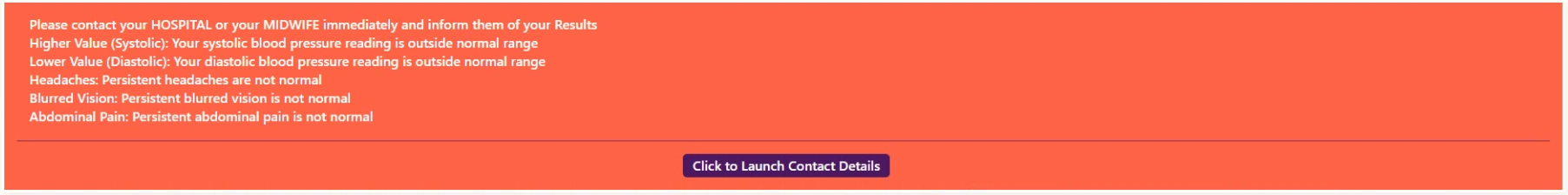

  1. A warning will also appear at the top of the page indicating an action the woman should take. These can include;
    1. Contacting midwifery serviced immediately.
    2. Wait a specified amount of time and enter another observation.

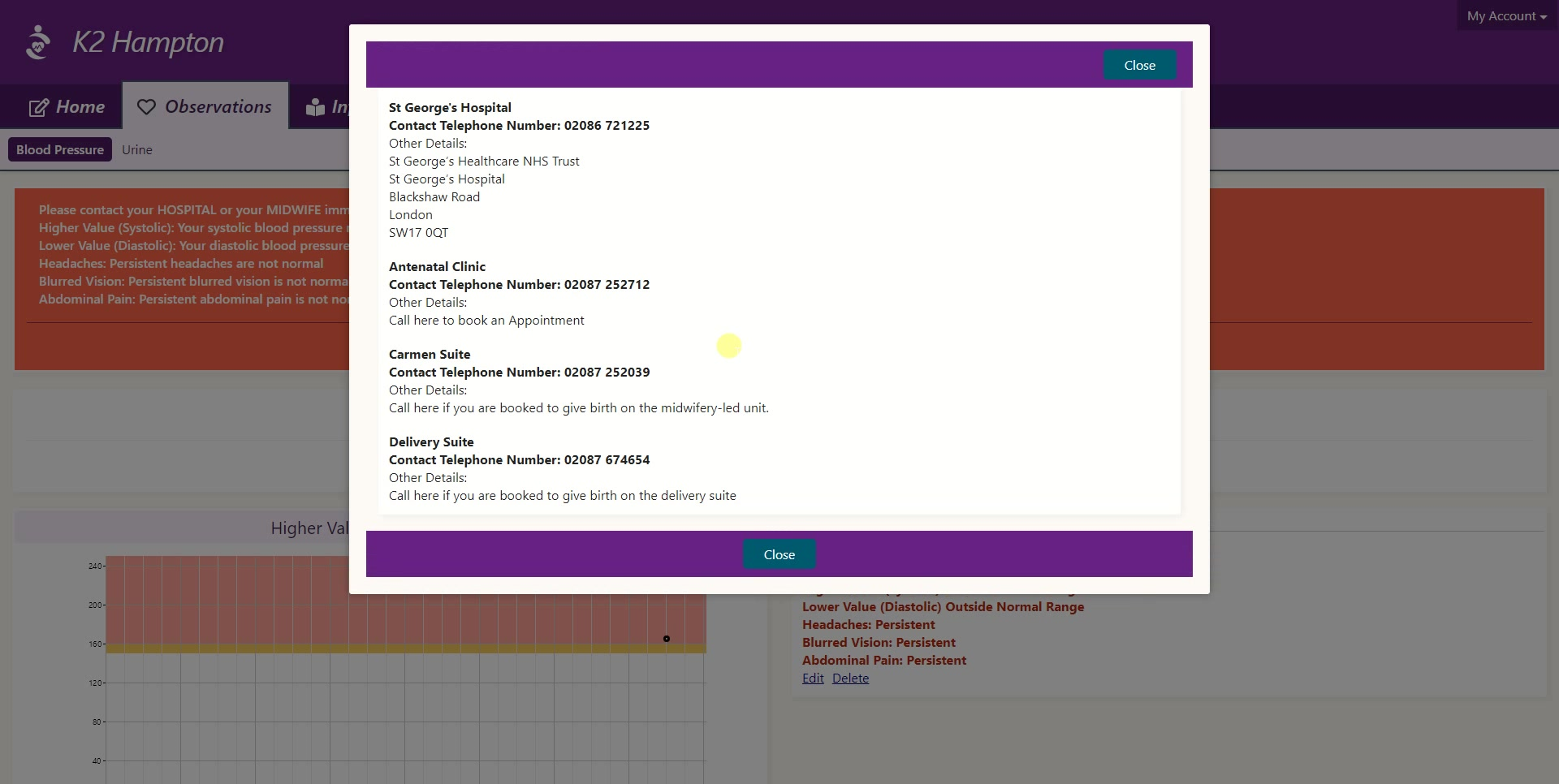

  1. The Woman can click on the launch contact details, which will access the care providers contact details.

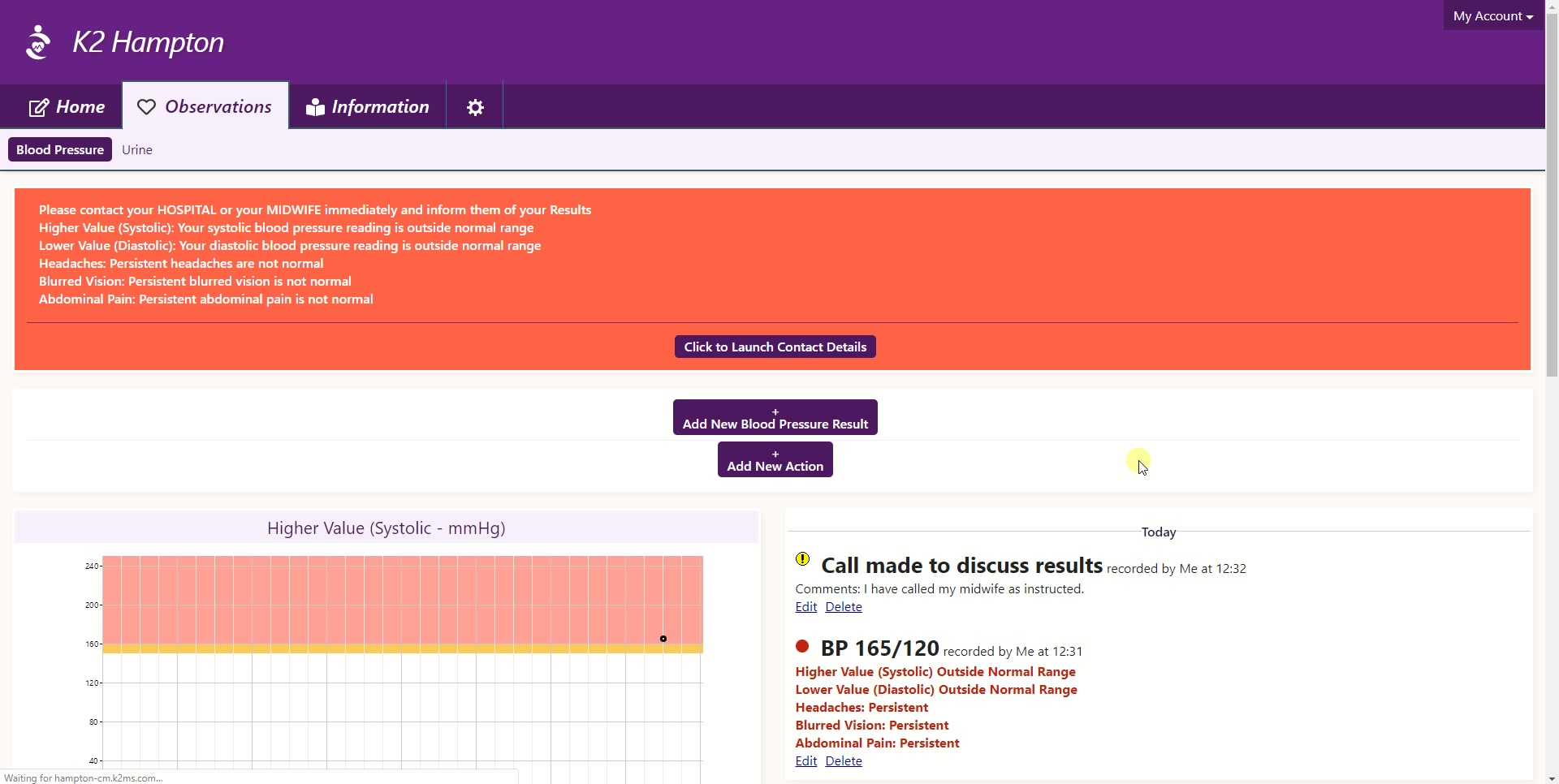

Blood Pressure - Add an Action

The woman is able to record that she acted on a recording and contacted her midwifery service.
Please note: The woman entering an action does not de-escalate the warning to the clinician. This is only done once the clinician has recorded an action.

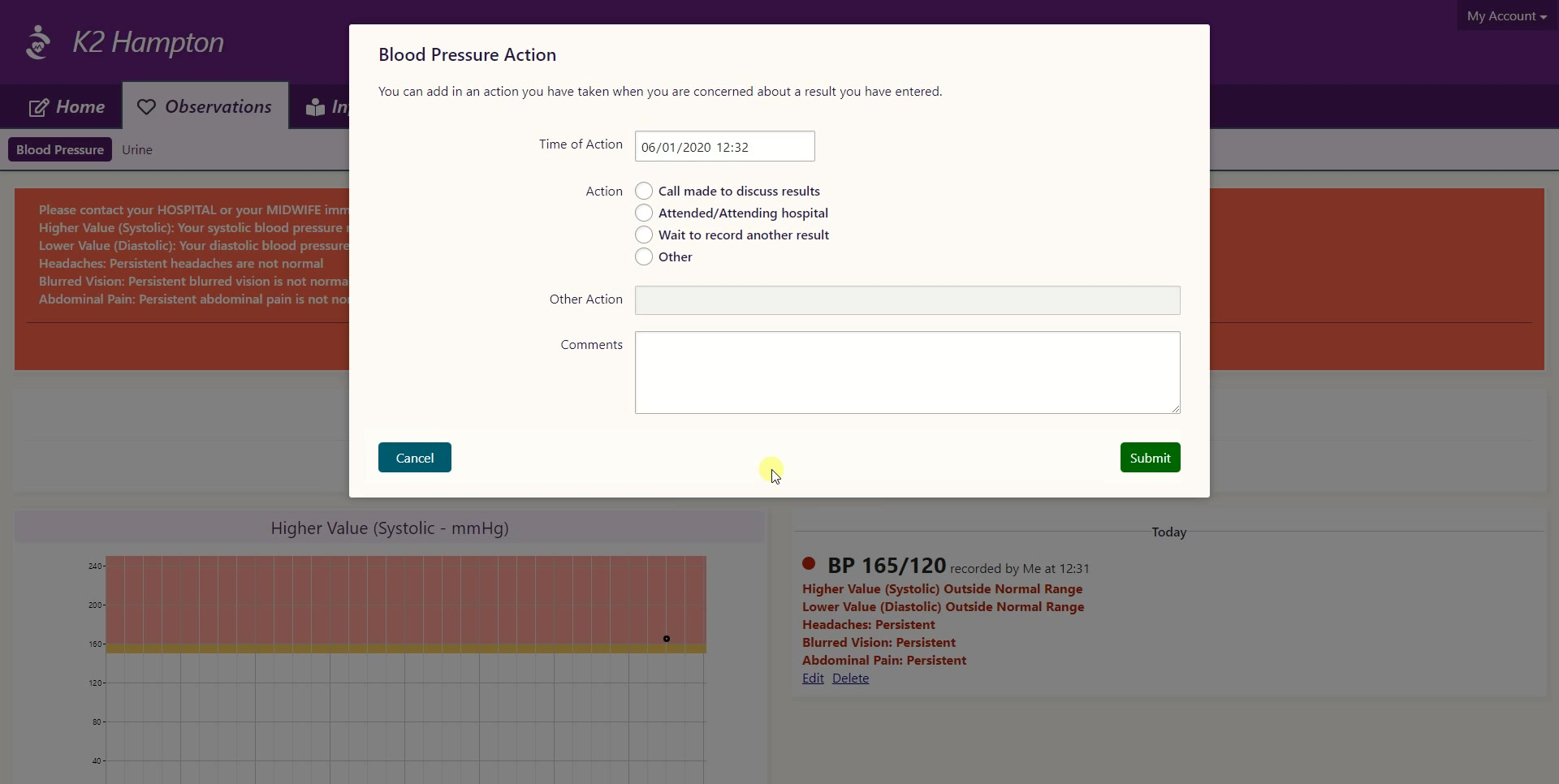

  1. Click add action
  2. Change the time of the action (this is likely to be a few minutes before you enter it).
  3. Enter the Type of Action
  4. Add any other comments required.
  5. Click Submit.

  1. Actions will appear in the table in (in chronological order - most recent at the top) alongside the blood pressure observations.
  2. Click edit to change the value entered.
  3. Click Delete and confirm to delete the entry.
  4. Please note: the edit and delete functions should only be used if mistakes are made not to change or delete data that is accurate. All changes/deletions are logged in a full audit Trail.

Congratulations! You should now be able to enter a blood pressure observation, understand the appropriate action to take and record that an action has been taken.
